The world's first high frame rate Ultra HD switcher with 12G-SDI

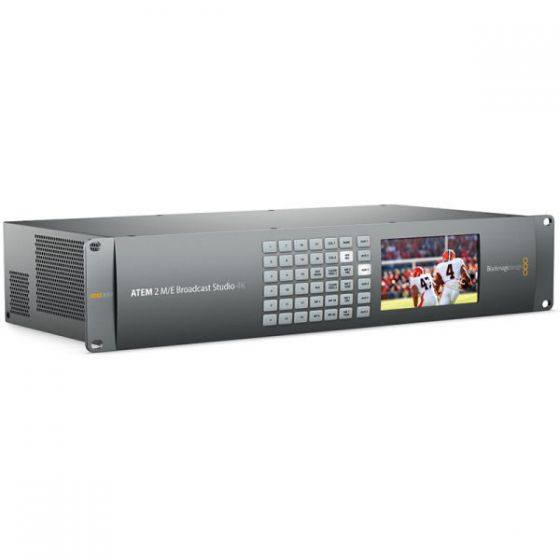

When you need absolute performance in live production, the ATEM 2 M/E Broadcast Studio 4K is like no other ATEM switcher. Completely redesigned to operate up to 60 fps in Ultra HD, this new ATEM can easily handle these massive speeds. All connections are native 12G-SDI so you can connect up to 2160p60 video with a single standard BNC cable. This high performance ATEM model also instantly switches to all other HD formats so you can install it today and use it for HD, while being ready for tomorrow. That totally eliminates the cost of moving to Ultra HD in the future because ATEM does it now. This powerful ATEM also includes a larger media pool, 2 native Ultra HD multi viewers, 6 keyers, full DVE, SuperSource and re-sync on each input that all operate in Ultra HD up to 2160p60.
When you need high frame rate, fast action production
The incredibly advanced ATEM 2 M/E Broadcast Studio 4K model goes beyond the 6G-SDI of other ATEM switchers because it includes the latest 12G-SDI for twice the frame rate of the other models, up to an incredible 2160p60. That's frame rates up to 60 fps in Ultra HD! 12G-SDI also supports all regular 720p, 1080i and 1080p HD video formats, which means you have the switcher you can use today for regular HD work, while being ready for Ultra HD when you need. Only 12G-SDI gives you high frame rate Ultra HD via a single BNC connection that also plugs into all your regular HD equipment.
Multi View Monitoring
Use a single screen for all your monitoring
ATEM's built in multi view lets you monitor the switcher's video inputs on a single SDI monitor or regular HDMI TV! Multi view outputs in regular 1080i HD, so even if your broadcast is in SD or Ultra HD you can still use a standard TV for monitoring. You can customize the multi view layout and also add custom labels. Multi view makes it easy to watch your program, preview, and live sources all simultaneously on a single monitor and you can even choose from 4 different screen layouts.
Get dozens of exciting effects and transitions
ATEM includes a huge range of real time high quality transitions that are available in all SD, HD or Ultra HD resolutions. Use mixes, dips, wipes and more for amazing broadcast quality live switching. Every transition is instantly available and you get full control of the transition type, pattern, length and other attributes. Create a customized 'on air' looks using the large choice of wipe patterns.
Exciting multi layer effects
ATEM includes amazing quality keying. Get powerful upstream keyers with luminance, linear, pattern and chroma keying that can handle everything from green screen shots to graphics and multi layer special effects. You also get 2 independent downstream keyers for logos, titles and other 'on air' graphics.
