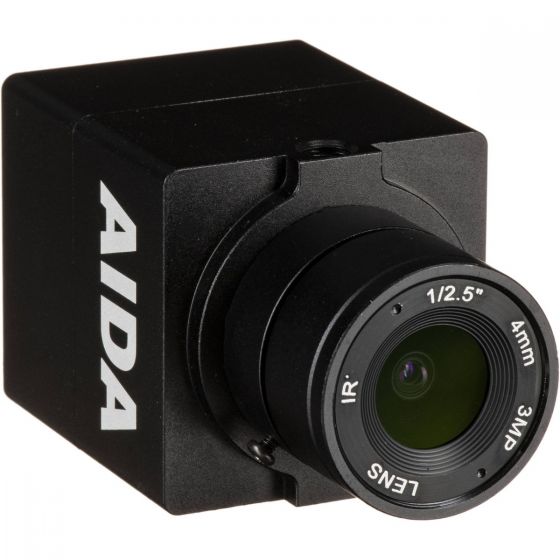

AIDA Imaging Full HD HDMI Camera with TRS Stereo Audio Input
The AIDA Imaging Full HD HDMI Camera with TRS Stereo Audio Input is an ultracompact camera suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications. Measuring approximately 1.5" wide by 1.5" tall and 3" deep, the camera can fit in a variety of spaces where a small footprint is advantageous such as a dashcam in a race car, or discretely in the corner of a surgical room. The camera captures HD at up to 60 fps, and it features a C/CS mount for mounting interchangeable lenses and includes a 4mm lens with iris control.
The camera has a sync connector that enables syncing up to the sync signal in a broadcast facility and an HDMI output that allows you to connect to switchers, monitors, recorders, and other devices for viewing and/or recording the image. An included breakout cable provides inputs for power, RS-485 control, and mic/line-level audio, which is embedded in the HDMI output. The cable also has an integrated OSD controller on it. This allows you to select and adjust the built-in image tools such as noise reduction, black-level adjustment, flicker detection as well as selecting the exposure mode. The camera body includes both a power and HDMI indicators, allowing you to confirm its operation at a glance. Two 1/4"-20 threaded mounting holes, one on the bottom and one on the top allow you options when mounting the camera.
The camera utilizes white balance and noise reduction, while featuring a motion compensated temporal noise reduction, while the WDR helps provide a clear image.
Image Sensor | 1/3 inch Progressive CMOS |
Sensor Size | Diagonal 7.2mm |
Effective Pixels | Horizontal: 1920, Vertical: 1080 |
Pixel Size | 2.75 µm x 2.75 µm |
Resolution |
1080p & 1080i: 1920 x 1080 720p & 720i: 1280 x 720 |
Resolution/Rate |
1080 60p/59.94p/50p/30p/29.97p/25p/24p |
Output | HDMI 1.3a |
Color Space | 4:2:2 (YCbCr) 10bit |
Min. Illumination | 0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON) |
White Balance | Auto & Manual (9,000 K – 11,000 K) |
Input | 3.5mm TRS Stereo Mic-in & Line in over I/O Cable |
Sample Rate | 16/24/32 Bits |
Camera Control | RS-485 VISCA, OSD Button |
Operation Temp | 32° F – 104° F |
Dimension | 39mm x 39mm x 50.50mm / 1.53” x 1.53” x 1.99” (With default 4mm Lens) |
Weight | 180g / 0.39lbs (With default 4mm Lens) |
Power | 6W at 12VDC (+9 – +15VDC) |
Manufacturer | AIDA |
---|
